Tools
Spring tighteners
Jack
Support (for use under the car)
A set of keys
Allen key

Front
Undo the wheel nuts and raise the car. Make sure that you support and secure the car in the raised position before continuing. Remove the wheel, push away the holder of the brake hoses and the ABS-cables that are mounted on the spring struts lower part. Now the lower part of the spring strut can be removed from the spindle. Open the bonnet and remove the black rubber cover. Loosen the two bolts right nest to the rubber cover. Now it makes things easier if someone holds the spring strut, preventing it from falling down and doing damage. When the bolts are removed, two black plastic clips have to be pressed together in order to make the sspring strut come completely loose. These clips are situated next to the recently removed bolts. Now the spring strut can be removed.

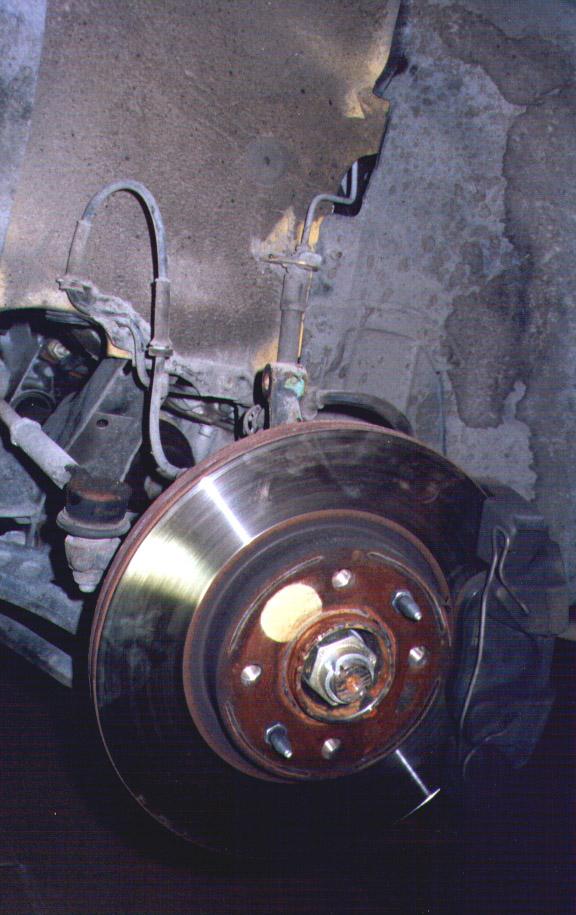

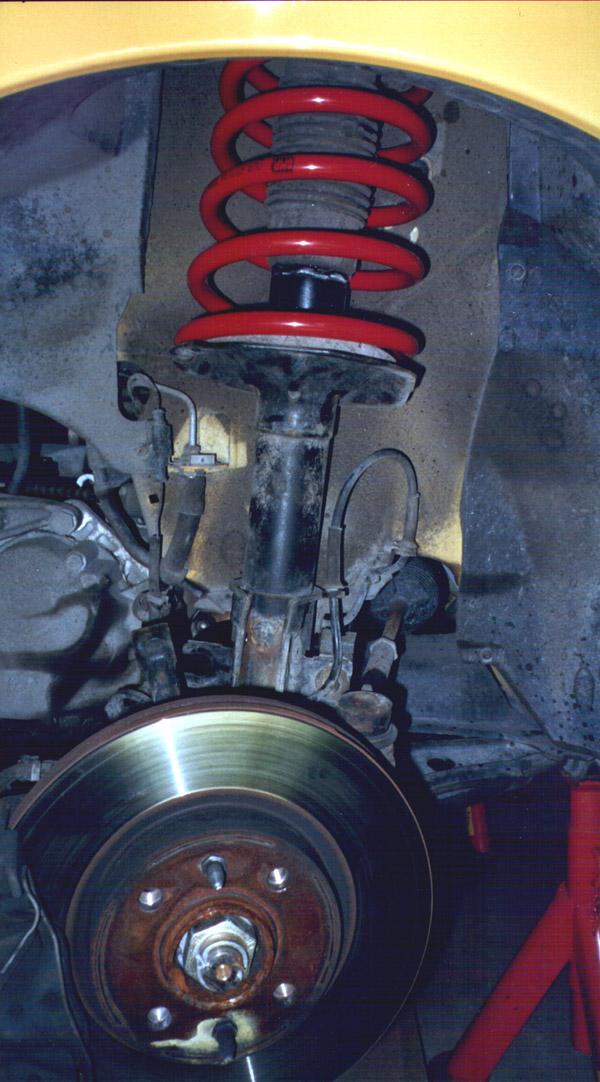

springfront1                          springfront2
[Spring strut with new spring]                [Spring strut removed]

Mount the spring tightener and tighten it to make the spring come loose. Remove the upper spring plate by loosening the upper nut. Use a key and an Allen key. Now the spring plate can be removed and the old spring exchanged with the new. Remove the spring tightener from the old spring and apply it to, ant tighten it on the new one. Mount the spring plate and undo the spring tightener. Now the spring strut and the wheel can be mounted on the car.

Rear
Raise up the car. Support and secure the car before continuing! The wheel need not be removed. Place the jack under the spring and raise it a little. Remove the bolt in the lower part holding the shock absorber. Do also remove the plastic bit that holds the lower part of the spring. Now the jack can be lowered and the spring removed. Mount the new spring and raise the jack a little in order to press the spring a bit. Mount the shock absorber and the plastic bit.

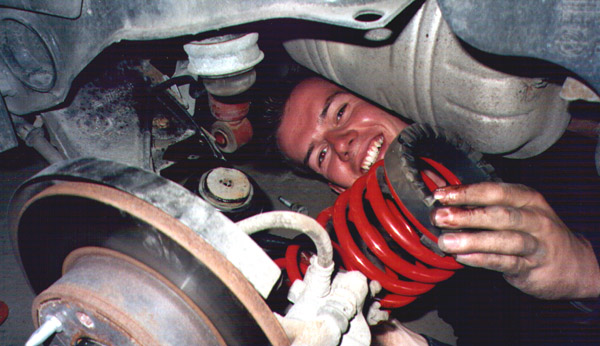

springrear1      springrear2
[New spring]                                             [The spring mounted]

When lowering the car the wheel alignments should be checked and adjusted in order to prevent the tyres from for ex. being worn down on one side.

/Bosse Anell
